Free Fall Lifeboat

China Marine Free Fall Lifeboat

Material: F.R.P.
Certificate: CCS,EC,BV,ABS,RINA,DNV.
Capacity: 22~130Person.
Standard: ISO 9001:2000 and Maritime Equipment Directive(MED)
Product description: MARINE life saving boats丨China Free-fall lifeboats丨Freefall lifeboats For Sale丨Rescue Boat
INQUIRY

Lifeboat Description

100P Lifeboats Totally Enclosed Type FRP 100 Persons and Crane

Our Lifeboat designed and manufactured according to the latest SOLAS Classification Society and National Authority requirements.

Requirements :
SOLAS 74 Convention as amended,Regulations III/4,X/3,III/21,III/31 and III/34
IMO Res. MSC. 48(66) amended by MSC.207(81),MSC.218(82),MSC.272(85) and MSC.320(89)
IMO Res. MSC. 36(33) -(1994 HSC Code)8
IMO Res. MSC. 97(73)-(2000 HSC Code)8
IMO Res. MSC. 81(70) amended by MSC.200(80),MSC.226(82),MSC.274(85) and MSC.321(89)
IMO MSC/Circ. 1006 and IMO MSC/Circ. 98

Enclosed Lifeboats Application

Application:CARGO VERSION,TANKER VERSION,MARINE OFFSHORE,PLATFORM ETC

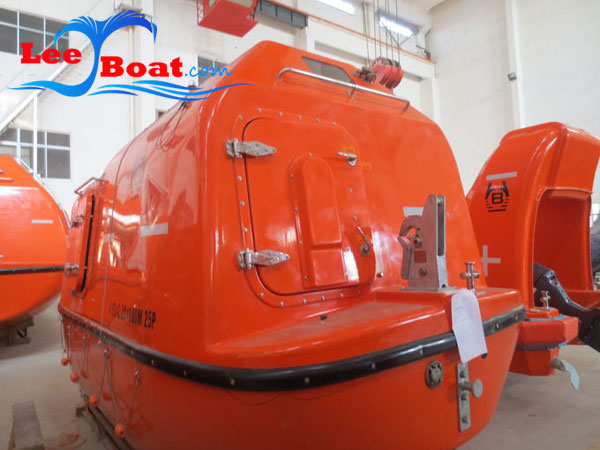

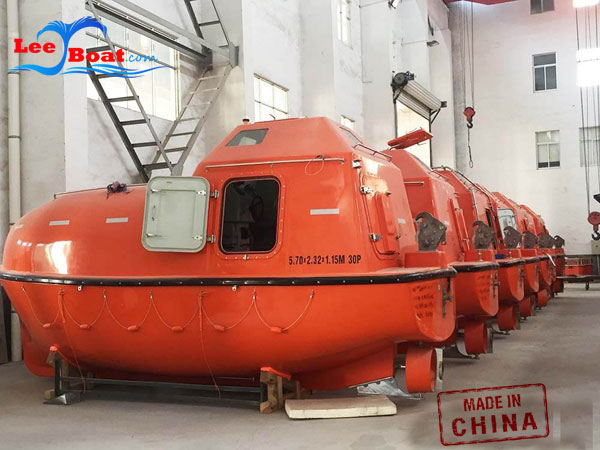

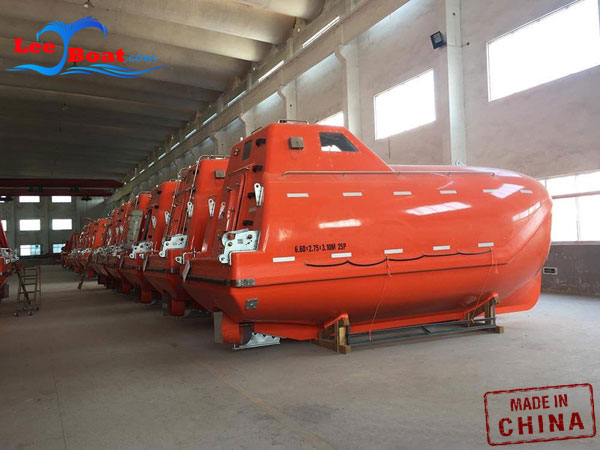

Totally Enclosed Lifeboat (TELB)

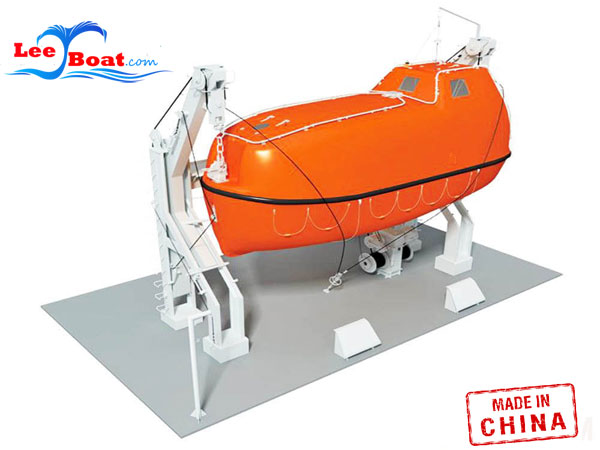

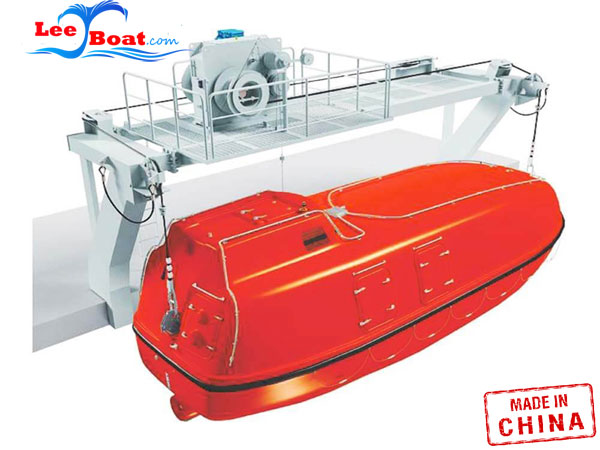

Made of fire-retardant glass-fibre reinforce polyester (GRP), our totally enclosed propelled lifeboat craft (TELB) can be used on all Types ships,Marine training and offshore installations. Launched by a cantilevered platform davit or single pivot davit, these conventional lifeboats have a positive stability up to 180 degrees. Persons from 26P to 150P.

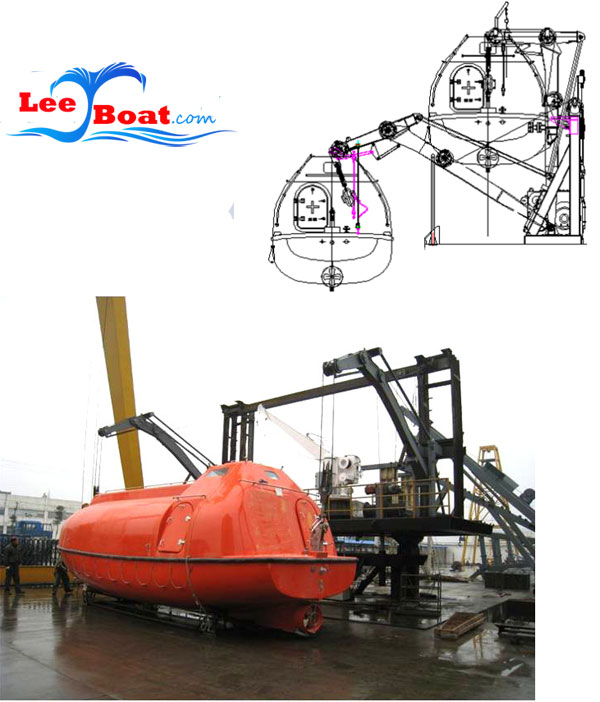

Totally Enclosed lifeboat/rescue boat is launched by gravity luffing arm type davit or platform davit,protect the safe of Passenger who stay

in platform or ship.

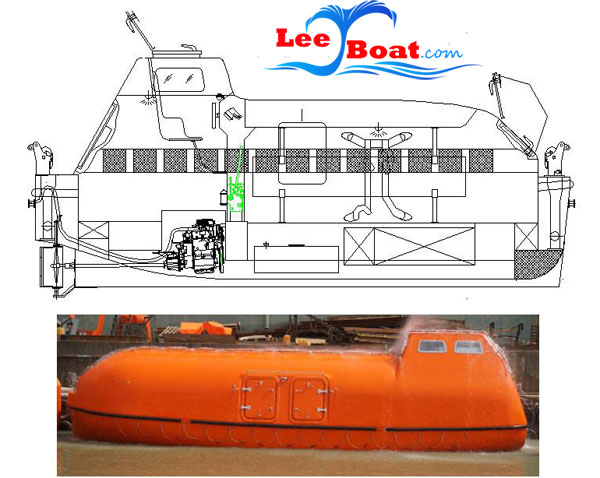

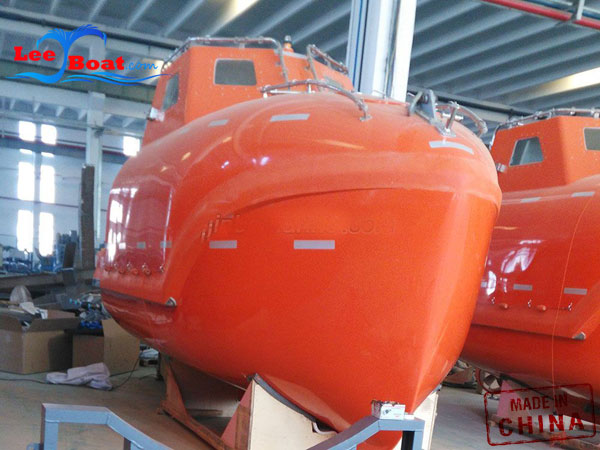

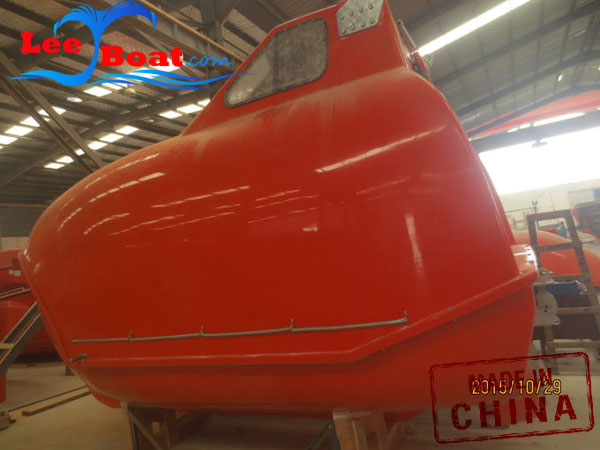

Free-Fall Lifeboat

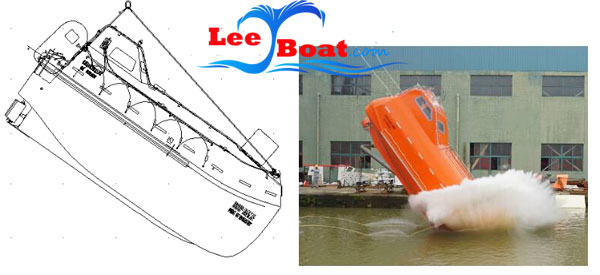

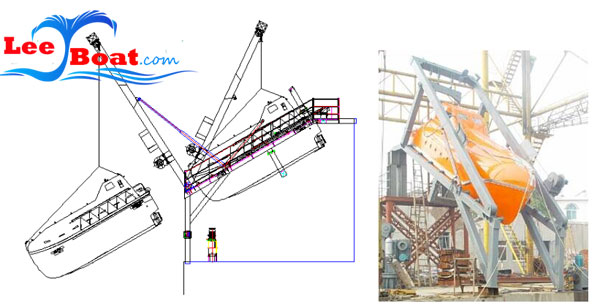

A free-fall lifeboat is the fastest way of escaping from a vessel/platform in emergencies. Free fall Life boat simply slide out from a ramp onboard and hit the water well away from the ship or installation with a high positive forward motion.

These Enclosed Life boats comply with the latest IMO/SOLAS regulations and come in tanker and drycargo versions.

*Totally enclosed Lifeboat/Rescue boat or Gravitational collapse lifeboat,20-150 persons
*Free Fall Life Boat 12-70 persons

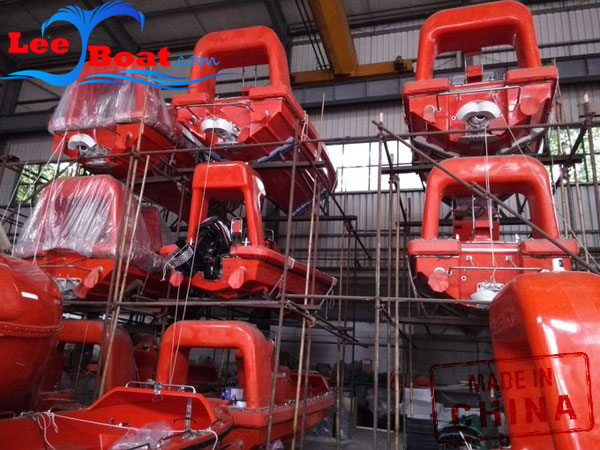

*Rescue Boat 6 persons
*Fast Rescue Boat 6-15 persons
*Inflated Fender/Rigid Fast Rescue Boat
*Each vessel Match lifeboat standard:
Totally enclosed Lifeboat/Rescue boat(Gravity type): one ship, two enclosed lifeboat with davit
Free Fall Lifeboat:One ship,one free fall lifeboat and rescue boat c/w davits

Marine Enclosed Life Boat Specifications
Type:Totally Enclosed Lifeboat

total height: 2.84m
F.R.P length: 4.90m
F.R.P breath: 2.20m
F.R.P depth: 1.00m
capacity: 26P
empty boat weight: 2115kg
total weight: 4260kg
loading temperature: -30~65℃
working temperature(sea water): 1~32℃
speed (full load): ≥6 knots
outside colour: international orange

propulsion device
Engine type: 380J-3
power: 20.6kW
rpm (full load): 2800rpm
cooling method: Closing cooler
start method: two batteries
steering method: steering wheel
number of cylinder: 3
type of gear box: SCG025
decelerate ratio: 2.74:1/2.67:1
propeller: D400×H420
fuel oil: -10# OR -35#(GB252-87)
capacity of fuel tank: 190L
kind of lube: 5W30
Indication plate:
Language: Chinese and English
Material: stainless steel

Hook
hook type: two-point
S.W.L of hook: 40KN
hook distance 4.5m

Others Models of Free fall lifeboat

SPECIFICATIONS FOR TOTALLY ENCLOSED LIFEBOAT/RESCUE BOAT
AG-50F/C	Capacity(Persons)	Eninge	Size
	20P	380J	5.00x2.20x1.10
	26P	N485J	5.00x2.20x1.10
AG-75F/C	Capacity(Persons)	Eninge	Size
	50	380J	7.50x2.80x1.15
	60	N485J	7.50x2.80x1.15
AG-117F/C	Capacity(Persons)	Eninge	Size
	120	N485J	11.70x3.70x1.25
	150	N485J	11.70x3.70x1.25
