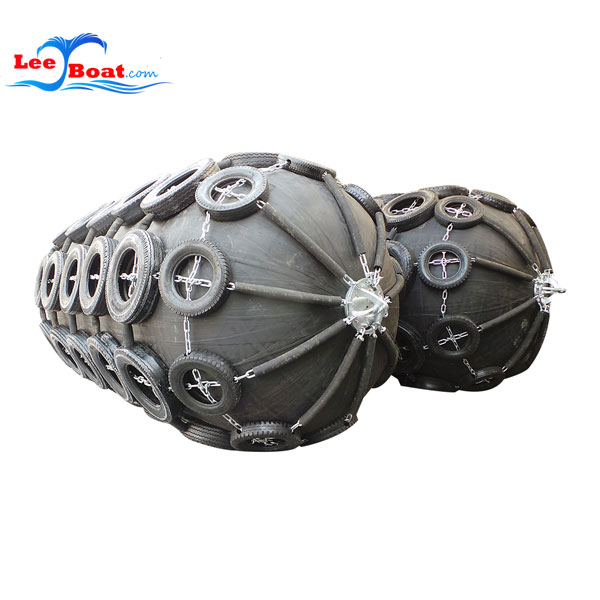

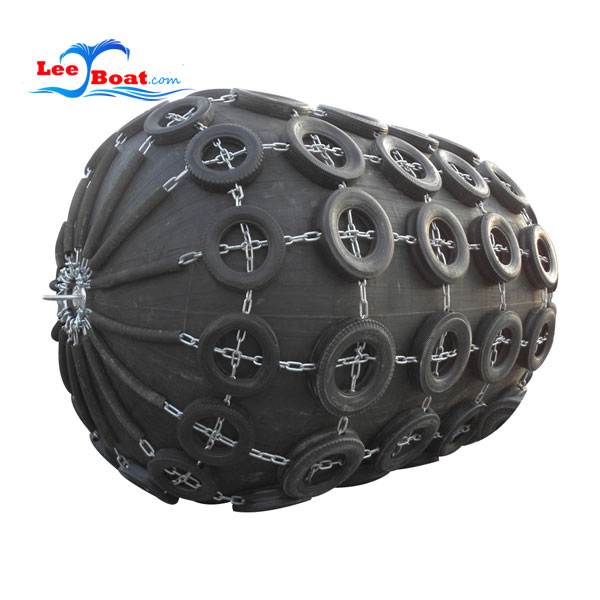

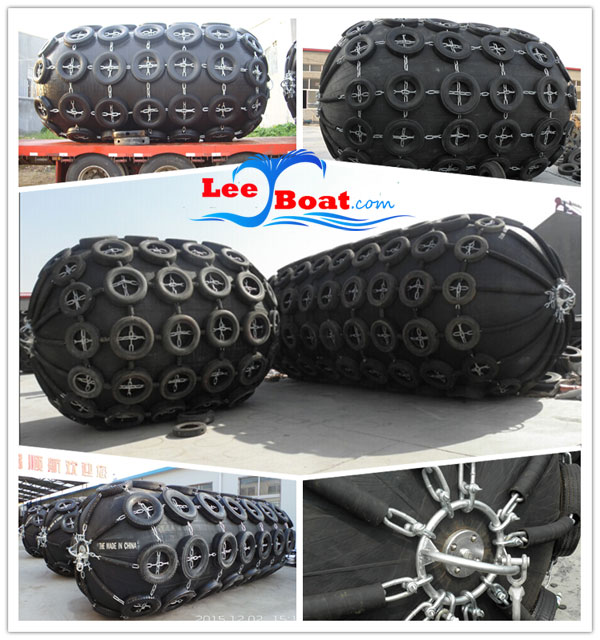

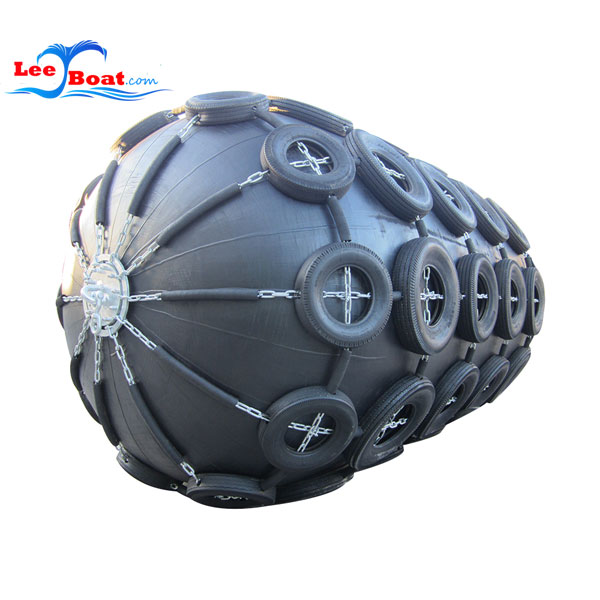

Pneumatic Fender

IP: 50KPa/80KPa (0.05MPa/0.08MPa)
Application: Docking Anti-collision
Tyre-chain Net, Rubber Tube For Option
Size: D3 X L5 Meter
Product description: MULTIPURPOSE BUOY丨HARBOR MOORING BUOY丨Ship and boat mooring buoy 丨 floating air-filled bumper fender
INQUIRY

Product Introduction

Marine fender also called pneumatic fender, rubber fender, yokohama fender, made by rubber & multi layer of rubber-dipped tyre fabric, is a leading anti-collision device for marine application in the world today. Marine fenders have become an ideal ship protection medium against collision among ship-to-ship (STS), ship to quay (STQ) and ship-to-berthing (STB), they are widely used for large tankers, vessels, docks, harbor wharfs and ocean platforms.

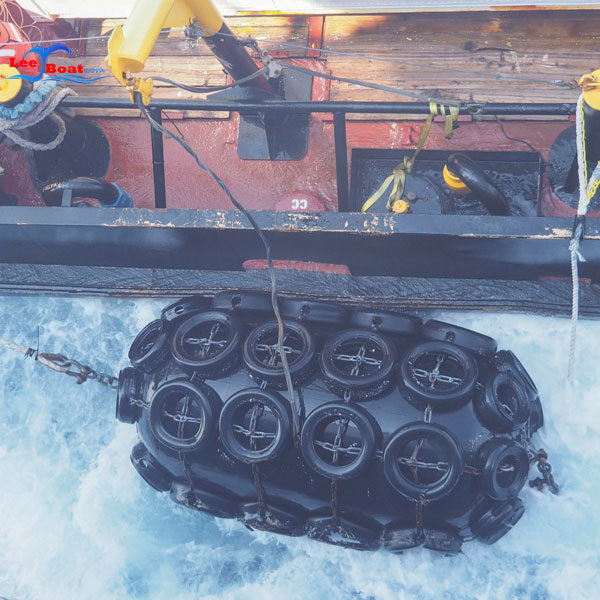

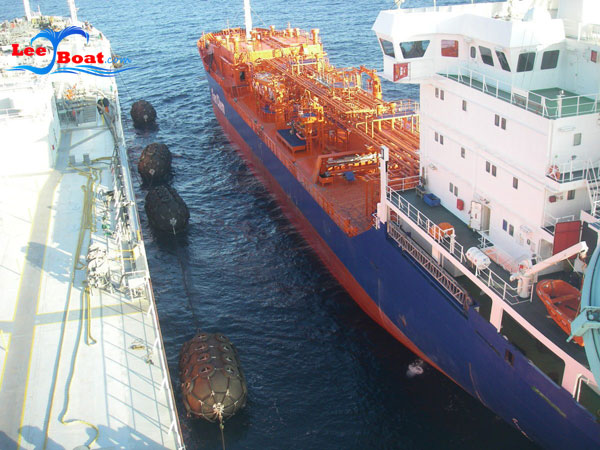

Our Floating Pneumatic Fender can be used for ship-to-ship (STS), ship-to-dock transfer operations, terminals, and for all kinds of ships.

Our fenders play a critical role in the safe operation of ship berthing and mooring, and also Mavideniz confirms that all its Pneumatic Rubber Fender fully comply with all CCS,BV,GL certificated

Features

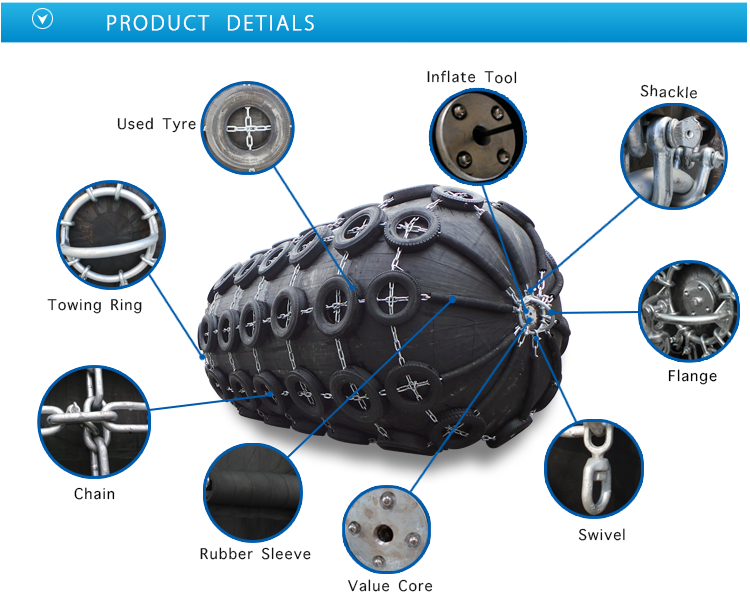

Our Pneumatic Fender is constructed of several layers of strong tire-cord, and are thus resistant to pressure and cutting.
Our Pneumatic Fender utilizes the compressive elasticity of air. Therefore performance deterioration due to fatigue is absent.
Energy absorption of Pneumatic Fender does not decrease at inclined compression up to 15 degrees.
The reaction force of Our Pneumatic Fender does not increase sharply even under excess load conditions.
Pneumatic Fenders are adequately reinforced using strong tire-cord to cope with shearing and compression forces as well as internal pressure.

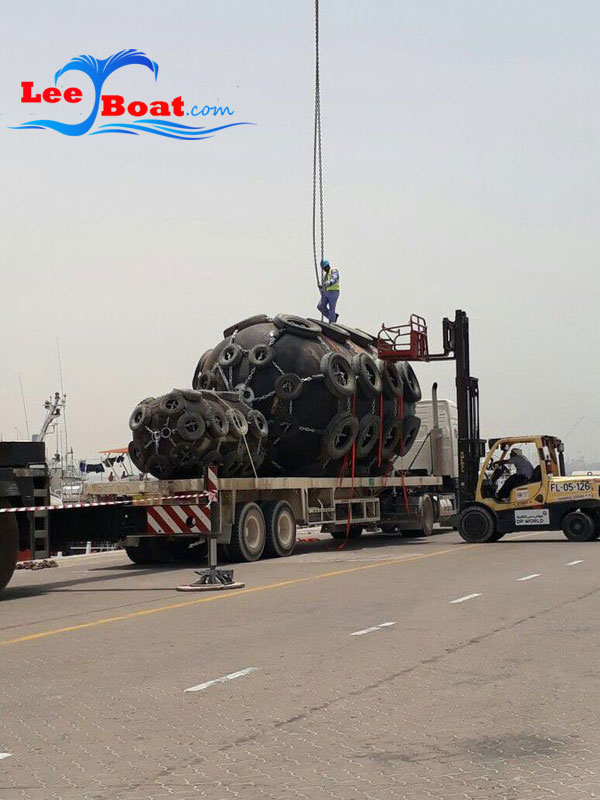

Pneumatic Fender can be removed easily to a suitable jetty or quay when not in use, or transferred to another mooring point whenever required.
Marking-less Pneumatic Fenders make use of a specially formulated outer rubber to avoid marking on the ship’s hull.
The Low-pressure Pneumatic Fender type is designed with a lighter body construction. Our Pneumatic Fender is popular for application requiring large clearance between the ship and jetty or between two ships but not necessarily needing the high performance of a standard high-pressure pneumatic fender.
Vertical-Pneumatic fenders are specially designed to be installed vertically (Hydro-pneumatic fenders are water-ballasted). They are popular with vessels whose berthing point is below the water line such as catamaran ships, semi-submersibles platforms or other submersibles. Also, they are suitable as secondary fenders at both bow and stern of the ship
Pneumatic Fender watch is convenient for checking the internal pressure of a fender by using sensors installed in the fender body and receiver. The receiver may be used for one or several fenders simultaneously.
Globuoy is a modified pneumatic fender for use as a surface or sub-sea buoy in equipment installation, mooring, anchoring, and various offshore operations. It can be used with higher working pressure or can be filled with pressure resistant material for various underwater applications. It is a non-collapsible buoy in case of over-submergence.

Specification

Specification D×L(m)	Intial pneumatic pressure 0.05MPa			Initial pnuematic pressure0.08MPa
Specification D×L(m)	Sphere Weight(KG)	R(KN)	GEA(KJ)	Sphere Weight	R(KN)	GEA(KJ)
0.5×1.0	25	64	6	25	85	8
0.6×1.0	32	74	8	32	98	11
0.7×1.5	50	137	17	50	180	24
1.0×1.5	80	182	32	80	239	45
1.0×2.0	100	257	45	125	338	63
1.2×2.0	120	297	63	165	390	88
1.35×2.5	165	427	102	226	561	142
1.5×3.0	315	579	153	370	761	214
1.7×3.0	405	639	191	436	840	287
2.0×3.5	590	875	308	632	1150	430
2.5×4.0	1050	1381	663	1110	1815	924
2.5×5.5	1333	2019	943	1410	2653	1317
3.0×5.0	1880	2000	1050	2155	2709	1571
3.0×6.0	2160	2488	1312	2470	3292	1888
3.3×4.5	2020	1884	1175	2300	2476	1640
3.3×6.0	2300	2783	1675	2600	3652	2338
3.3×6.5	2700	3015	1814	3080	3961	2532
3.3×10.6	4403	5257	3067	5020	6907	4281
4.5×9.0	6554	5747	4752	7470	7551	6633
