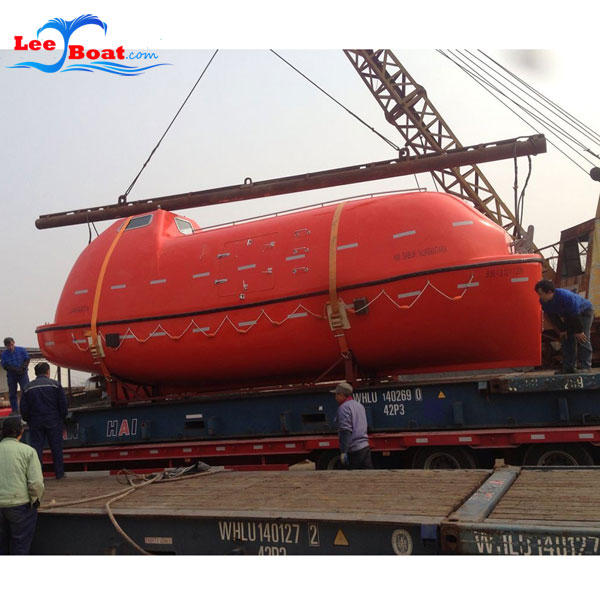

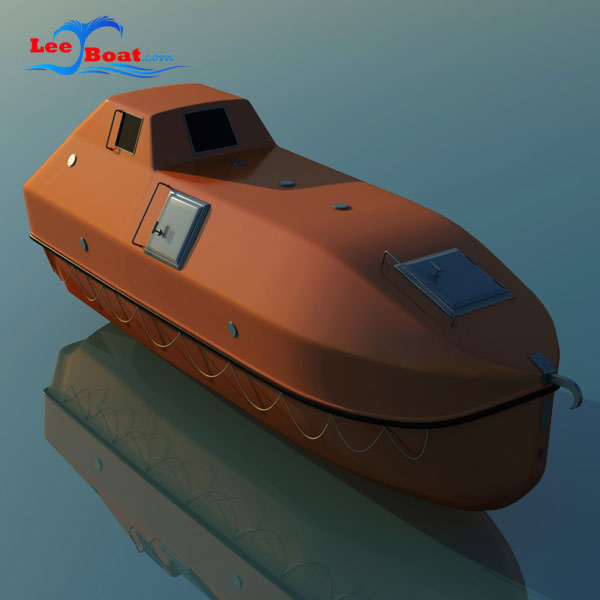

Free Fall Lifeboat

Open Type FRP Rescue Boat with Davit

Material: F.R.P.
Certificate: CCS,EC,BV,ABS,RINA,DNV.
Capacity: 22~130Person.
Standard: ISO 9001:2000 and Maritime Equipment Directive(MED)
Product description: MARINE life saving boats丨China Free-fall lifeboats丨Freefall lifeboats For Sale丨Rescue Boat
INQUIRY

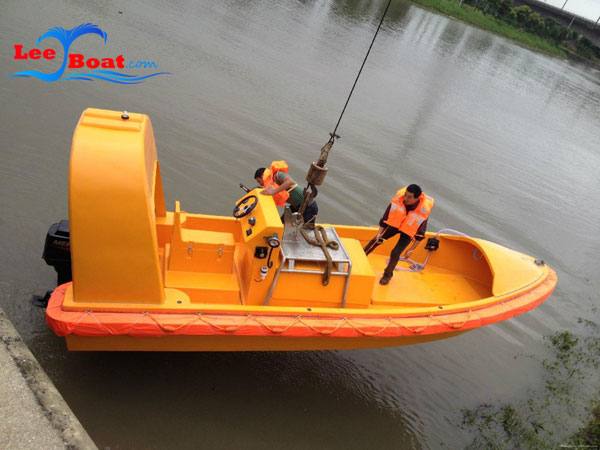

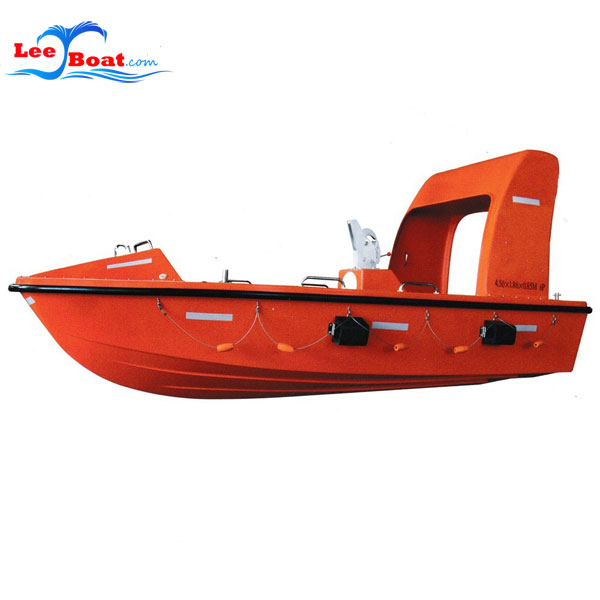

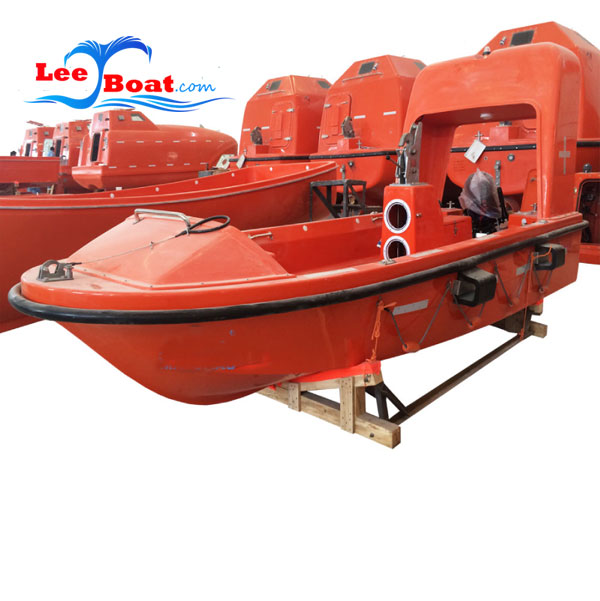

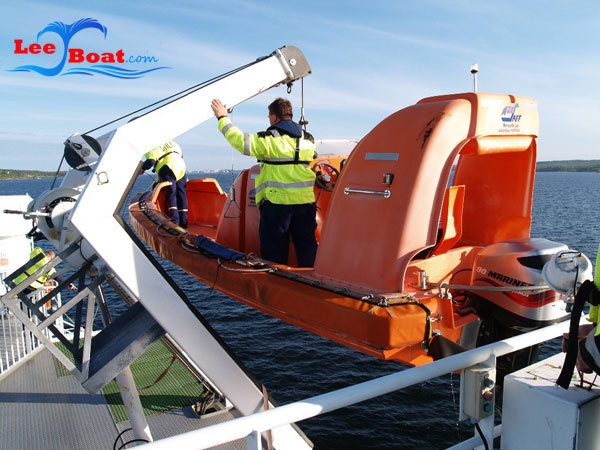

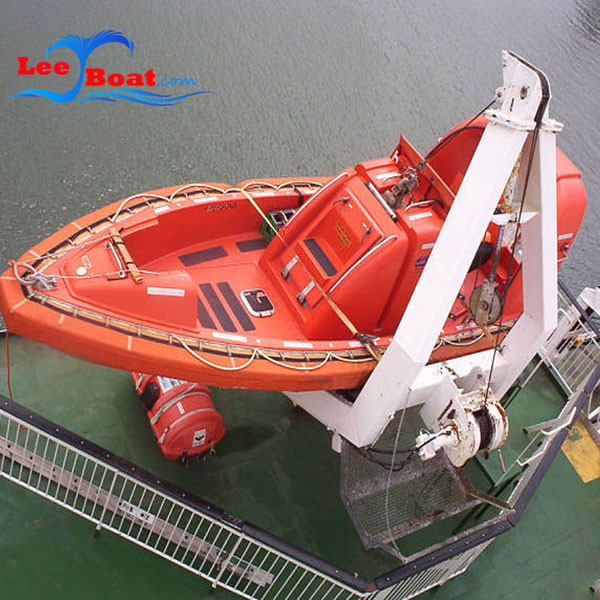

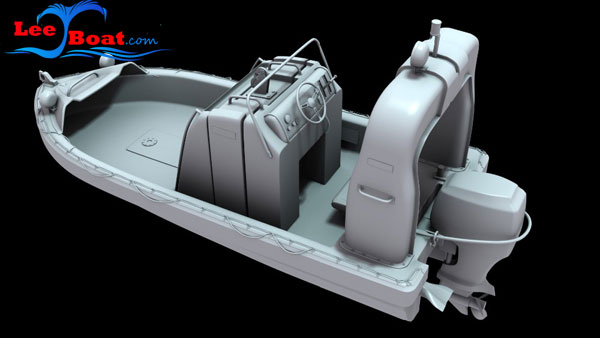

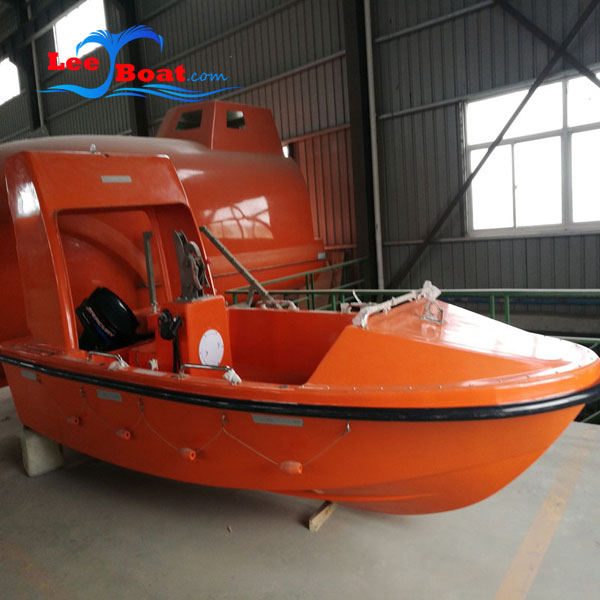

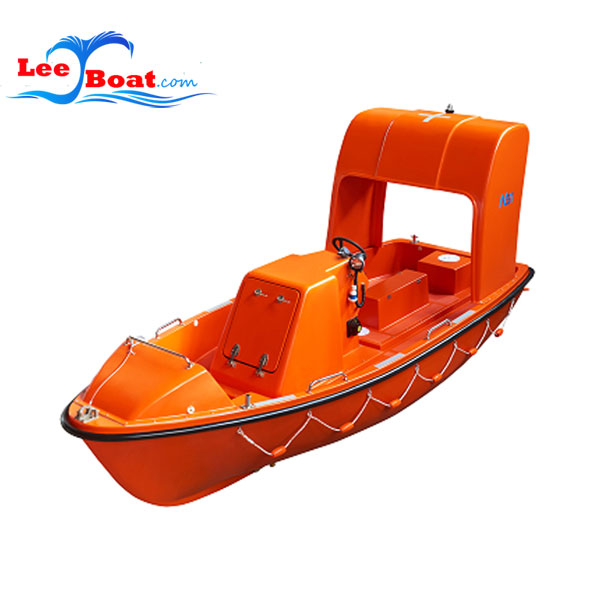

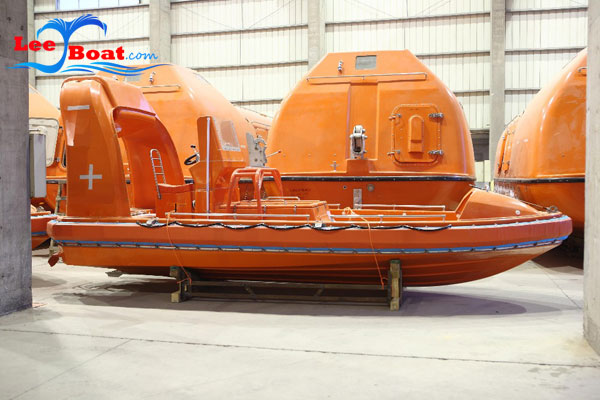

Marine Open Type FRP Rescue Boat with Davit

Product Description

Product details:

1.Comply with the requirements and rules of SOLAS and amendment 1996, LSA Code, MSC.218(82), MSC.272(85), MSC.320(89) & MSC.81 (70), MSC. 226(82), MSC.274(85), MSC.321(89);
2.Boat body material: fire-pretended type FRP;
3.Fit the self-righting device. It can self-righting by itself when capsized;
4.Fit the off-load release mechanism with the safety pin;
5.Equipments is equipped according to SOLAS requirement;
6.The surface for walking is the antiskid;
7.Equip a manual pump remove the pondlng In the boat;
8.Rubber fender is fitted around the boat;
9.The deck can self-motion drainage;
10.Running time of rescue boat when full-loaded & full-speed is more than 4 hours.
11.Speed:28knots(3P),20knots(full loaded).

propulsion device
Engine type: 380J-3
power: 20.6kW
rpm (full load): 2800rpm
cooling method: Closing cooler
start method: two batteries
steering method: steering wheel
number of cylinder: 3
type of gear box: SCG025
decelerate ratio: 2.74:1/2.67:1
propeller: D400×H420
fuel oil: -10# OR -35#(GB252-87)
capacity of fuel tank: 190L
kind of lube: 5W30
Indication plate:
Language: Chinese and English
Material: stainless steel

Hook
hook type: two-point
S.W.L of hook: 40KN
hook distance 4.5m

Others Models of Free fall lifeboat

SPECIFICATIONS FOR TOTALLY ENCLOSED LIFEBOAT/RESCUE BOAT
AG-50F/C	Capacity(Persons)	Eninge	Size
	20P	380J	5.00x2.20x1.10
	26P	N485J	5.00x2.20x1.10
AG-75F/C	Capacity(Persons)	Eninge	Size
	50	380J	7.50x2.80x1.15
	60	N485J	7.50x2.80x1.15
AG-117F/C	Capacity(Persons)	Eninge	Size
	120	N485J	11.70x3.70x1.25
	150	N485J	11.70x3.70x1.25
