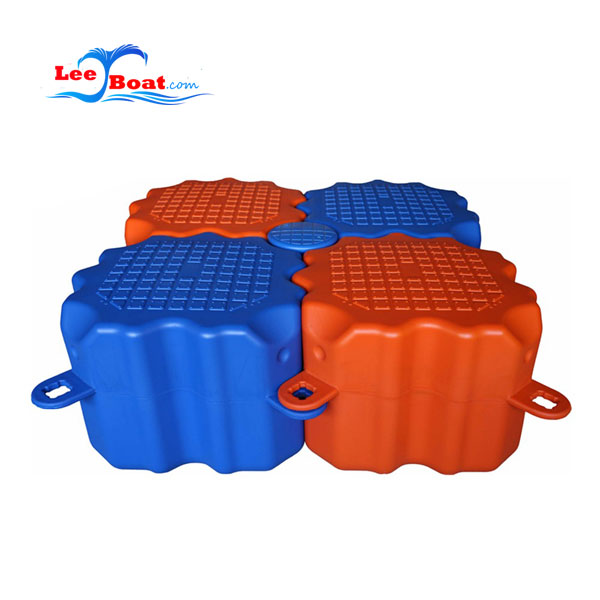

Modular Floating Cubes

Product Description

Material	Weight	Working Temperature	Buoyancy	Color

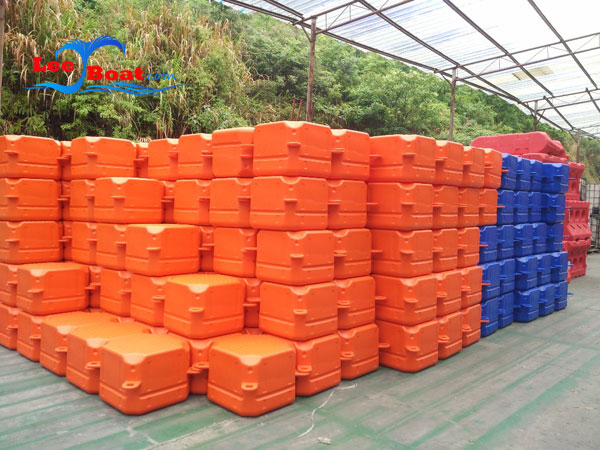

HMWHDPE	7± 0.30 kg/pc	-60 ºC~80 ºC	325 KG/㎡	Blue, Orange, Grey

Function

1. Used to protect the jet ski from corrosion or algae.

2. Be used to build floating dock, pier, fishing platform, fish farm, walk way, pontoon bridge, swimming pool.

Feature

Imported PE with UV inhibitor,durable,environmentally friendly.

Load Capacity

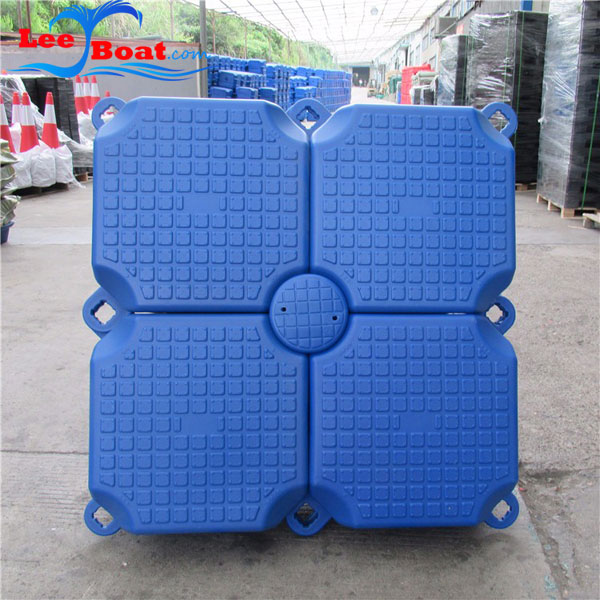

Each one square meter is made up of four pontoons, top load is 325kgs.
Draft without load: 2.5-3cm;
Draft with load of 150kgs: 15-20cm (safe);
Draft with load of 300kgs:35-40cm (load limit)
Anti-Wind Wave
1.The wave on water surface between 2-class and 3-class belongs to safe applicable range.
2.The wave on water surface between 3-class and 6-class can be applicable; however, the safety protection must be reinforced.
3.The wave on water surface between 6-class and 9-class is the restricted applicable range (it is suggested that the shipping shall not be parked and the visitors shall not be in or out).
Attention
To avoid shaking of the dock, the area of internal lake’s dock is not less than 30 square meter; the area of stage is not less than 100 square meter.

Anchoring
1.If water is less than 3m in depth, steel piles are to be put in proper place and then connected by wheels, which can prevent the floating dock from moving laterally but can automatically rise and fall in line with water level.
2.If water is over 3m in depth, anchoring can be used by sinking the anchorage block pulled by steel cables to the water bottom.

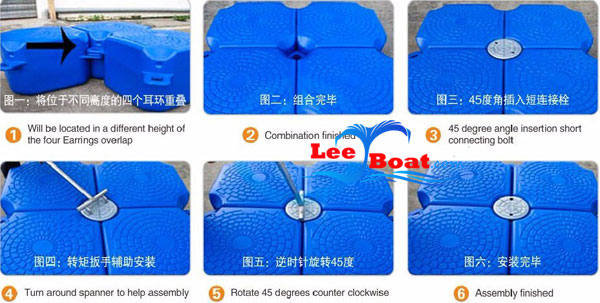

Installation

Cube Docks - Plastic Floating Docks

Applications

Made of sturdy but yielding high-density polyethylene, the blocks are resistant to temperature fluctuations, rust, and corrosion. Unlike wood or metal docks, these HDPE blocks require no sealing, maintenance, or additional protection. Their superior strength and stability make them ideal for a variety of commercial and industrial uses including:

• Modular barges
• Temporary helipads
• Containment booms
• Temporary floating bridges
• Drive-on boat or PWC lifts
• Floating docks
• Above ground pipe support

The full float allows the flexibility to configure any desired shape of platform or dock. The half float allows you to store a personal watercraft clear of the water and therefore remain dry.  This allows your asset to remain free from weed growth, barnacles and worms. It eliminates the need to ‘anti-foul’, which reduces costs and helps protect the marine environment.

The modular docking system is versatile and durable and can be used in a variety of applications. Our affordable rental options also make them a cost effective option for those needing temporary docks for industrial and aquaculture projects.
