Floating Dock

  • Floating Dock Cubes
  • Floating Dock Cubes
  • Floating Dock Cubes
Floating Dock CubesFloating Dock CubesFloating Dock Cubes

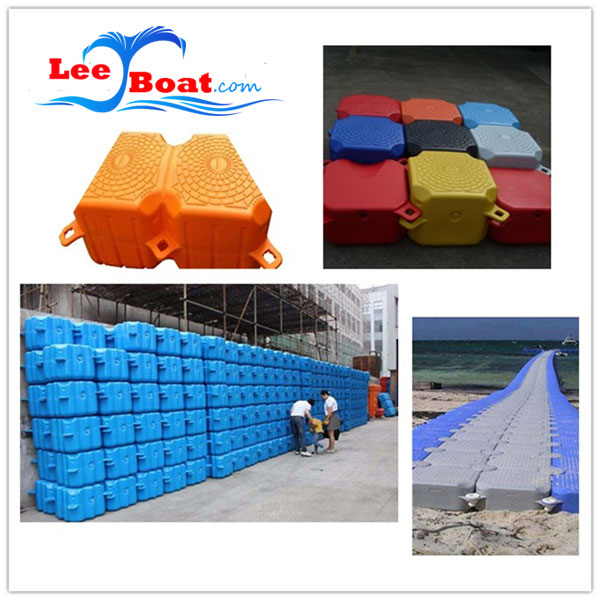

Floating Dock Cubes

  • Material: high-density polyethylene (HDPE)
  • Tensile capacity: 1.8 tons to 2 tons.
  • Weight:7kgs(±5%)
  • floating bridges, ocean floating boats, floating docks, floating boxes, combined floating systems, floating bridges, wharfs, wharfs, swimming pools, fish farms
  • Product description: Floating Dock Cubes丨Pontoon Cubes丨Floating Plastic Docks for Boats and Watercraft丨High quality Molecular HDPE Floating wharf
  • INQUIRY

Plastic Custom Floating Docks Cube

Plastic Jetski floating pontoon docks Floating pontoon cubes

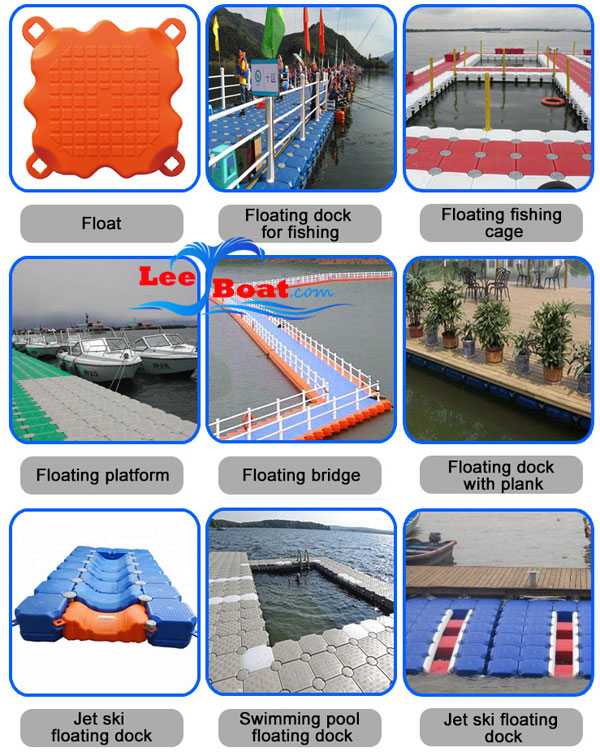

The scope of application
Water buoy. Pontoon.

Sailing, boating, watering, surfing,

military landing platform.

Breeding fishery box network structure.
Water sidewalk. Water, sunbathing with rafts.
Temporary motor boat (fitted with motor). Artificial floating island.
Water racing referee. Water stage.
Water lifespan. Erolary.

Water beer house, open water coffee cafe, water vacation hut,

water scenery, such as the base.

Outdoor water swimming pool, beach, outdoor lake fishing ground,

water treatment plant floor and partition board.

Float Characteristics:

The pontoon to 500mm / min test speed to do diagonal tensile test, up to 1600kgf above the tensile strength.

1. Safe and secure: engineering pontoon surface anti-skid pattern design, safe and secure; and the bucket four corners for the arc obtuse angle design, both safe and stable.

2. High bearing capacity: per square meter can carry 360kg weight.

3. Multi-purpose: can be widely used in various fields.

4. Affordable: maintenance and repair costs less. In addition to natural force majeure and artificial improper use, almost no need to spend maintenance, maintenance costs.

5. Easy to dismantle: quick and easy installation and dismantling; assembly simple, fast, flexible, diverse shapes, the overall use of modular structure,

6. Mobility variability: can be changed according to need, combined into any size and any structure of the facilities; with a variety of landscape needs, the rapid replacement of the platform shape. In the case of

7. The appearance of bright colors, beautiful shape, for the scenic icing on the cake, enhance the publicity effect.

8. The cost is reasonable, the economy, from a long-term point of view, can save a large number of maintenance, maintenance, replacement, maintenance costs and time.

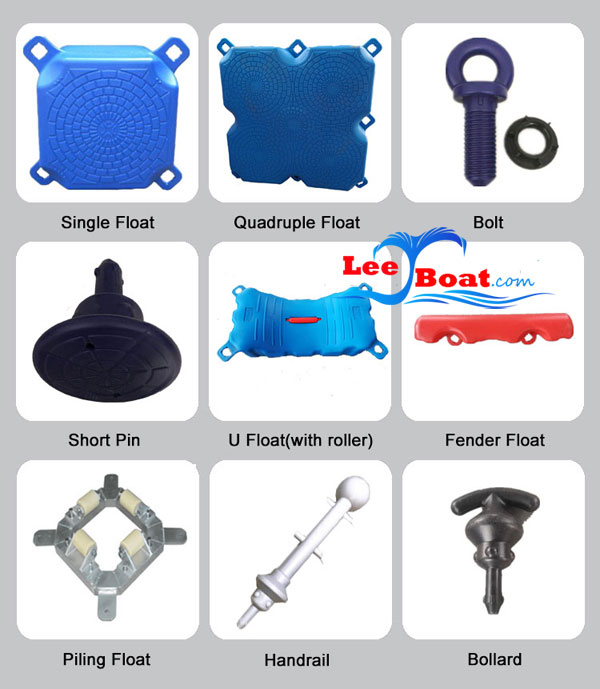

9. Equipped with complete equipment, a series of bolt, cable piles, anti-collision ball, fence, landing side of the bridge and pedal, etc,the dock can be parked in various sizes of vessels; the other because of floating buoyancy characteristics of the floating platform, Landing and automatic lift, the passengers up and down the safety of the vessel, greatly increased comfort.

10. Material: Imported tough high molecular weight polyethylene resin (HMWHDPE), add the corresponding anti-static, antioxidants, anti-ultraviolet agent

The material is characterized by: anti-corrosion, anti-freeze, anti-oxidation, anti-ultraviolet line of the strengthening material, from seawater, chemicals, pharmaceuticals, oil and water erosion;

11. The product life is more than 15 years.




Product Specifications:
Weight About 7.0 kg (15 lbs) ± 5%

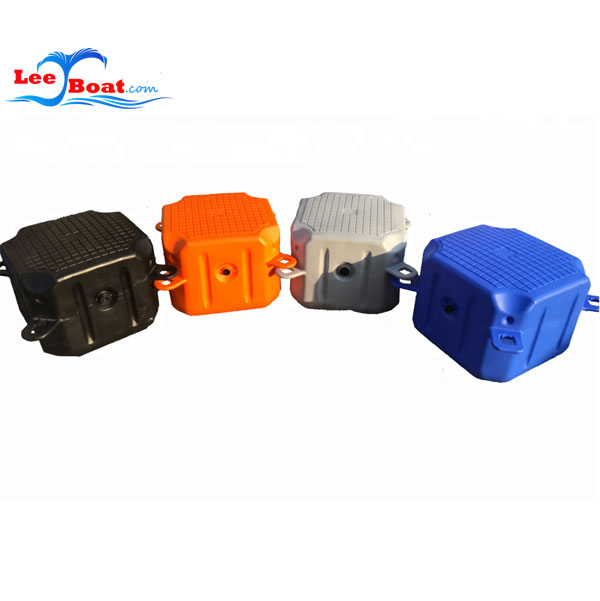

Colour Water blue, light gray, orange, can be customized
Bearing capacity 360 kilograms per square meter
Material Polymeric polyethylene (HDPE)

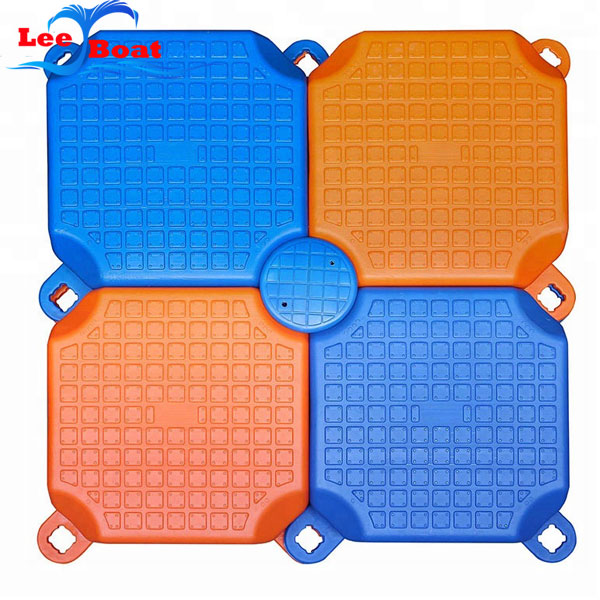

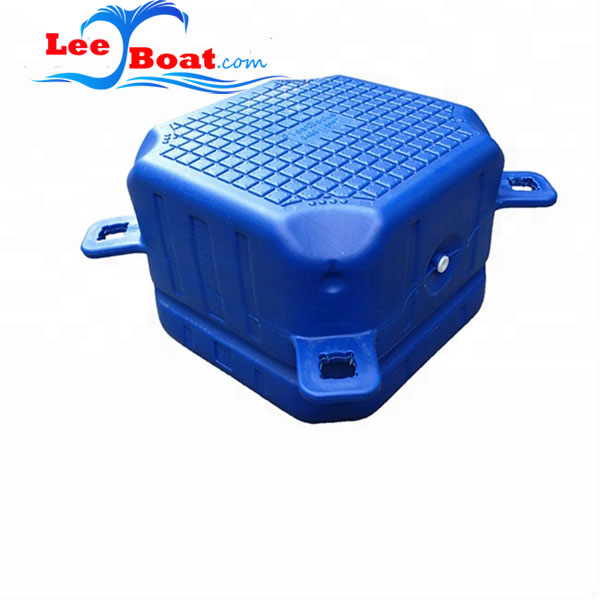

Single float size Long: 50 cm wide: 50 cm high: 40 cm




Packaging & Delivery:

Packaging Details:

Nude packing
20 ft GP container can load 240 pcs (60 square meter) of Single Floats with accessories;
40 ft GP container can load 480 pcs (120 square meter) of Single Floats with accessories;
40 ft HQ container can load 600 pcs (150 square meter) of Single Floats with accessories.


Applications

Made of sturdy but yielding high-density polyethylene, the blocks are resistant to temperature fluctuations, rust, and corrosion. Unlike wood or metal docks, these HDPE blocks require no sealing, maintenance, or additional protection. Their superior strength and stability make them ideal for a variety of commercial and industrial uses including:

  • Modular barges
  • Temporary helipads
  • Containment booms
  • Temporary floating bridges
  • Drive-on boat or PWC lifts

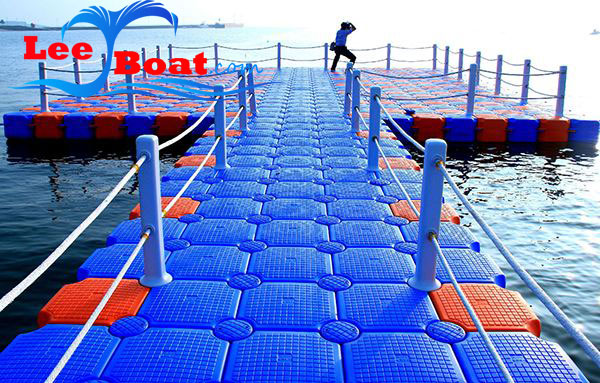

  • Floating docks
  • Above ground pipe support
Easier to maintain and more cost efficient than wood docks, the modular block system is also ideal for new marina construction. This lightweight modular docking system is easy to install and remove, greatly reducing labor costs and allowing them to be quickly removed prior to a hurricane or tropical storm.

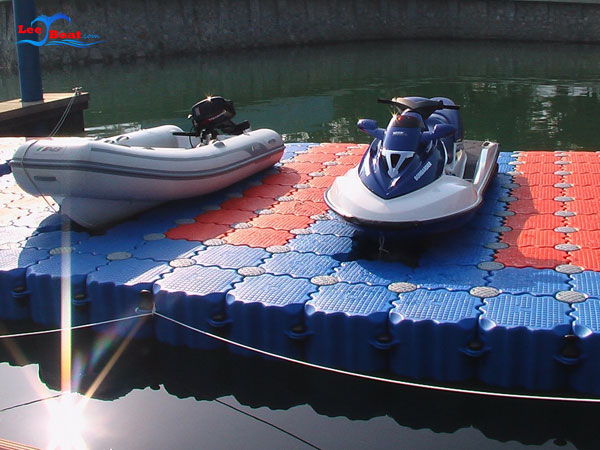

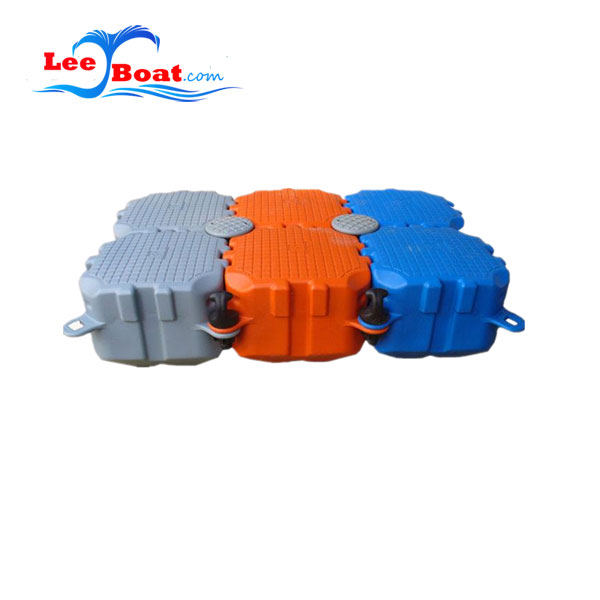

The full float allows the flexibility to configure any desired shape of platform or dock. The half float allows you to store a personal watercraft clear of the water and therefore remain dry.  This allows your asset to remain free from weed growth, barnacles and worms. It eliminates the need to ‘anti-foul’, which reduces costs and helps protect the marine environment.

The modular docking system is versatile and durable and can be used in a variety of applications. Our affordable rental options also make them a cost effective option for those needing temporary docks for industrial and aquaculture projects.
