Floating Boat Lifts

China Plastic Floating Dock Wholesale, Cheap Price and Good Quality.

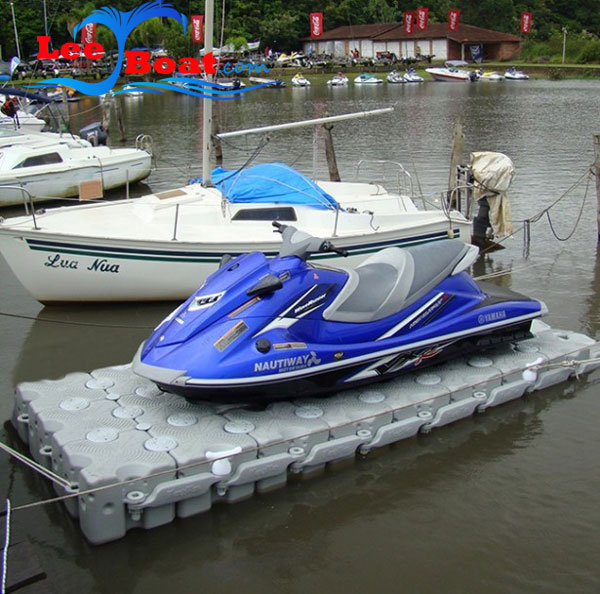

Jet Ski Drive on Dock | Boat Lift | PWC Lift

Material:It is made of high molecular weight polyethylene, which can float on water by blow molding process. It is a revolutionary product, which is the best product to solve the problem of land and water connection at present.

Description of vertical and horizontal bearing capacity of pontoon: each one square meter is made up of four pontoons, top load is 350kg.
Draft without load: 2.5-3cm;
Draft with load of 150kgs: 15-20cm(safe);
Draft with load of 300kgs:35-40cm(load limit)

Diagonal tensile test:
Each pontoon can withstand more than 2300 kg of tension and can not deform or break.

Anti Wind Wave:
1.The wave on water surface between 2-class and 3-class belongs to safe applicable range.
2.The wave on water surface between 3-class and 6-class can be applicable; however,the safety protection must be reinforced.
3.The wave on water surface between 6-class and 9-class is the restricted applicable range (it is suggested that the shipping shall not be parked and the visitors shall not be in or out).

Product Description

Wholesale high quality plastic floating dock
1.Material: HMWHDPE
2.Working Temperature: -60ºC~80ºC
3.Weight: 7.00kg/pc
4.Buoyancy: 350KG
5.Color: blue, orange are available
6.Function:
(1) Used to protect the jet ski from corrosion or algae.
(2) Be used to build floating dock, pier, fishing platform, fish farm, walk way, pontoon bridge, swimming pool.
7.Imported PE with UV inhibitor,durable,environmentally friendly

Installation

Cube Docks - Plastic Floating Docks

Float characteristics:

The pontoon to 500mm / min test speed to do diagonal tensile test, up to 1600kgf above the tensile strength.

1. Safe and secure: engineering pontoon surface anti-skid pattern design, safe and secure; and the bucket four corners for the arc obtuse angle design, both safe and stable.

2. High bearing capacity: per square meter can carry 360kg weight.

3. Multi-purpose: can be widely used in various fields.

4. Affordable: maintenance and repair costs less. In addition to natural force majeure and artificial improper use, almost no need to spend maintenance, maintenance costs.

5. Easy to dismantle: quick and easy installation and dismantling; assembly simple, fast, flexible, diverse shapes, the overall use of modular structure,

6. Mobility variability: can be changed according to need, combined into any size and any structure of the facilities; with a variety of landscape needs, the rapid replacement of the platform shape. In the case of

7. The appearance of bright colors, beautiful shape, for the scenic icing on the cake, enhance the publicity effect.

8. The cost is reasonable, the economy, from a long-term point of view, can save a large number of maintenance, maintenance, replacement, maintenance costs and time.

9. Equipped with complete equipment, a series of bolt, cable piles, anti-collision ball, fence, landing side of the bridge and pedal, etc,the dock can be parked in various sizes of vessels; the other because of floating buoyancy characteristics of the floating platform, Landing and automatic lift, the passengers up and down the safety of the vessel, greatly increased comfort.

10. Material: Imported tough high molecular weight polyethylene resin (HMWHDPE), add the corresponding anti-static, antioxidants, anti-ultraviolet agent

The material is characterized by: anti-corrosion, anti-freeze, anti-oxidation, anti-ultraviolet line of the strengthening material, from seawater, chemicals, pharmaceuticals, oil and water erosion;

11. The product life is more than 15 years.

Applications

Made of sturdy but yielding high-density polyethylene, the blocks are resistant to temperature fluctuations, rust, and corrosion. Unlike wood or metal docks, these HDPE blocks require no sealing, maintenance, or additional protection. Their superior strength and stability make them ideal for a variety of commercial and industrial uses including:

• Modular barges
• Temporary helipads
• Containment booms
• Temporary floating bridges

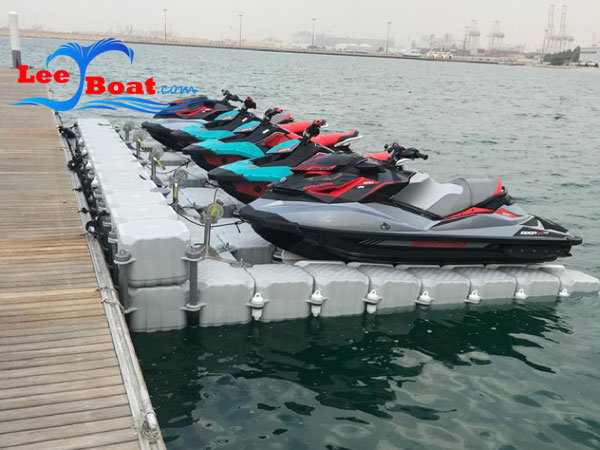

• Drive-on boat or PWC lifts

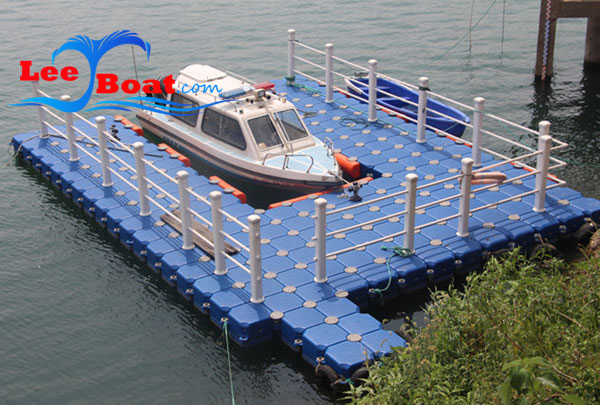

• Floating docks
• Above ground pipe support

Easier to maintain and more cost efficient than wood docks, the modular block system is also ideal for new marina construction. This lightweight modular docking system is easy to install and remove, greatly reducing labor costs and allowing them to be quickly removed prior to a hurricane or tropical storm.

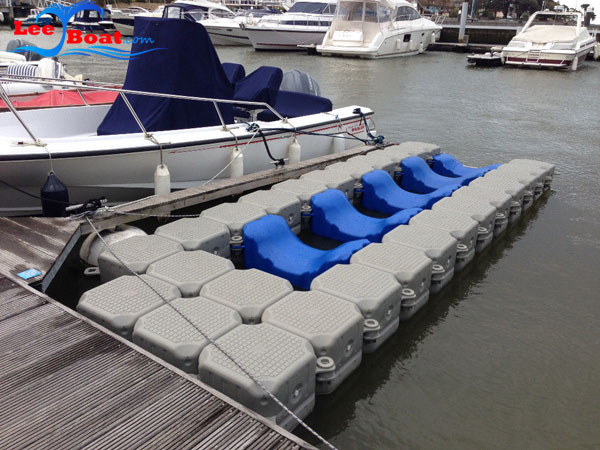

The full float allows the flexibility to configure any desired shape of platform or dock. The half float allows you to store a personal watercraft clear of the water and therefore remain dry.  This allows your asset to remain free from weed growth, barnacles and worms. It eliminates the need to ‘anti-foul’, which reduces costs and helps protect the marine environment.

The modular docking system is versatile and durable and can be used in a variety of applications. Our affordable rental options also make them a cost effective option for those needing temporary docks for industrial and aquaculture projects.
